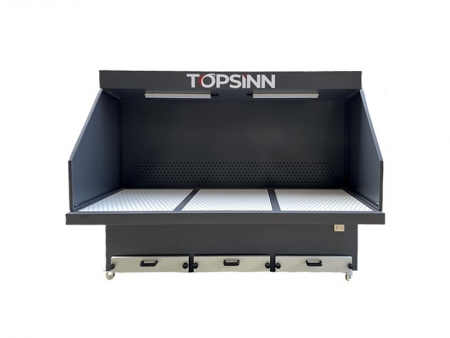

TODM-3000/6000 | |
照明Light | 內置LED照明燈 In-built LED |
靈活性Flexibility | 可敞開擋板Baffle Open |
操作面板Operation Panel | 標識清晰，簡單操作Mark clear,easy operation |
反吹單元Backflush Valve | 脈沖控制Pulse control |
過濾單元Filter Unit | 高效過濾等級F9HV/Ahlstrom/TORAY F9 |
移動Movable | 帶剎車腳輪，移動固定方便Wheels with brake |
節能控制Energy Saving(optional) | 支持變頻控制lnverter Control |
| TODM-3000 | TODM-6000 | |
| 濾筒材質 Filter cartridge material | 納米阻燃覆膜濾芯過濾等級F9 Flame retardant filter element,F9 | 納米阻燃覆膜濾芯過濾等級F9 Flame retardant filter element,F9 |
| 濾筒數量 Number of Filter cartridge | 3 | 5 |
| 設計風量 Air volume | 3000m/h | 6000m'/h |
| 全壓 Air pressure | 1500 | 2000 |
| 過濾效率 Filtration efficiency | 99.99% | 99.99% |
| 過濾面積 Filtoring aroa | 40㎡ | 67㎡ |
| 風機 Entrifugal fan | 電機3KW | 電機 2.2KW x2 |
| 塵桶 collector capacity | 20L | 30L |
| 電源要求 Powerrequirments | 3相4線，380v THREE-PHASE FOUR-WIRE,380V | 3相4線，380v THREE-PHASE FOUR-WIRE,38ov |
氣源要求 Air pressure request | 0.6MPa，無油無水壓縮空氣 0.6MP,compressed air without oil and water | 0.6MPa，無油無水壓縮空氣 0.6MP,compressed air without oil and water |
| 裝機重量 Unit weight | 380KG | 500KG |
| 外形尺寸mm) outiine Dimensionlmm) | 長1500×寬1500X高1800 | 長2200×寬1500X高1800 |
| 排放濃度(mg/m³) Emission concentration | <20 | <20 |
