| 配置描述 | |

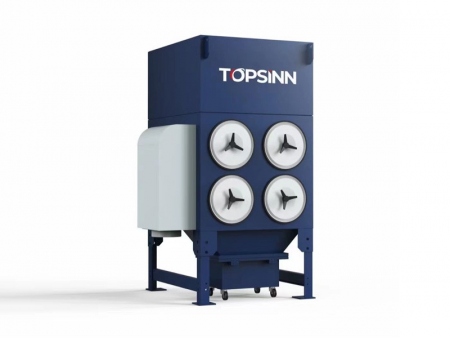

| TODC-4B/6B/8B | |
| 控制器 Controller | 自主開發（頂鑫智能環保) IndependentR&D |
| 人機顯示 HMI | 液晶文本 LCD |
| 反吹單元 Backflush valve | 脈沖控制 Rulse control |
| 過濾單元 Filter | 高效過濾等級F9 High efficiency filtration |
| 外接協議 Protocol | 以太網 EtherCAT |
| 節能控制 Energy saving(optional) | 支持變頻控制 Inverter control |
| TODc-4B | TODC-6B | TODC-8B | |
| 濾筒材質 Fiitercartridge material | 阻燃過濾等級F9 Flame retardant,F9 | 阻燃過濾等級F9 Flame retardant,F9 | 阻燃過濾等級F9 Flame retardant,F9 |
| 濾筒數量 Numberof Filter cartridge | 4 | 6 | 8 |
| 設計風量 Airvolume | 4000m³/h | 6000m³/h | 9000m³/h |
| 全壓 Air pressure | 3000 | 3600 | 5000 |
| 過濾效率 Fitration efficiency | 99.99% | 99.99% | 99.99% |
| 過濾面積 Filtering area | 82㎡ | 120㎡ | 160㎡ |
| 風機 Entrifugal fan | 5.5KW電機 5.5KW | 7.5KW電機 7.5KW | 11KW電機 11KW |
| 塵桶 collector capacity | 45L | 50L | 90L |
| 電源要求 Power requirments | 3相4線，380v THREE-PHASE FOUR- WIRE,380V | 3相4線，380v THREE-PHASE FOUR- WIRE,380V | 3相4線，380v THREE-PHASE FOUR- WIRE,380v |
| 氣源要求 Air pressure request | 0.6MPa，無油無水壓縮空氣 0.6MP,compressed air without oil and water | 0.6MPa，無油無水壓縮空氣 0.6MP,compressed air without oil and water | 0.6MPa，無油無水壓縮空氣 0.6MP,compressed air without oil and water |
| 裝機重量 Unit weight | 600KG | 800KG | 1000KG |
| 外形尺寸 outiine Dimension(mm) | A:2198，B:1348, c: 1060，D: 1390 | A:2807，B:1423, c:1180，D:1510 | :2575，B:2215, c: 1016，D: 1466 |
| 排放濃度(mg/M) Emission concentration | <20 | <20 | <20 |
